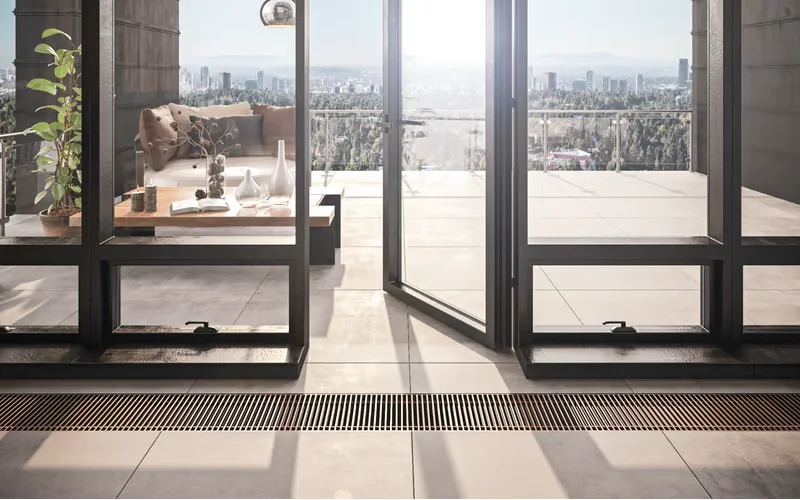

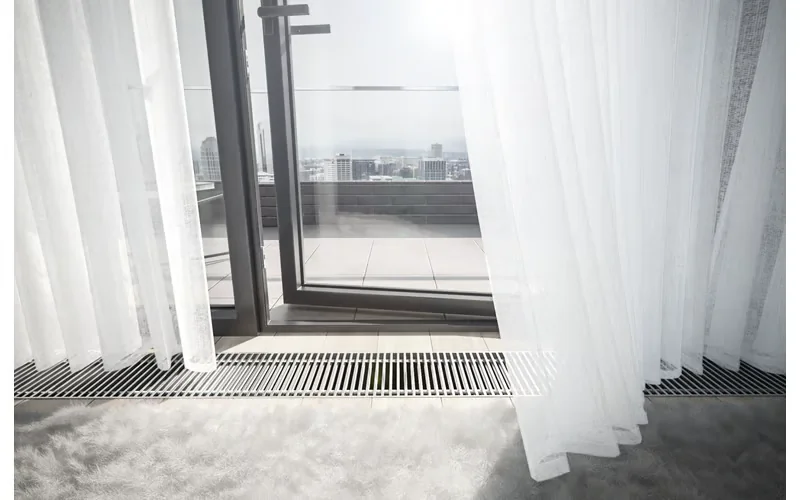

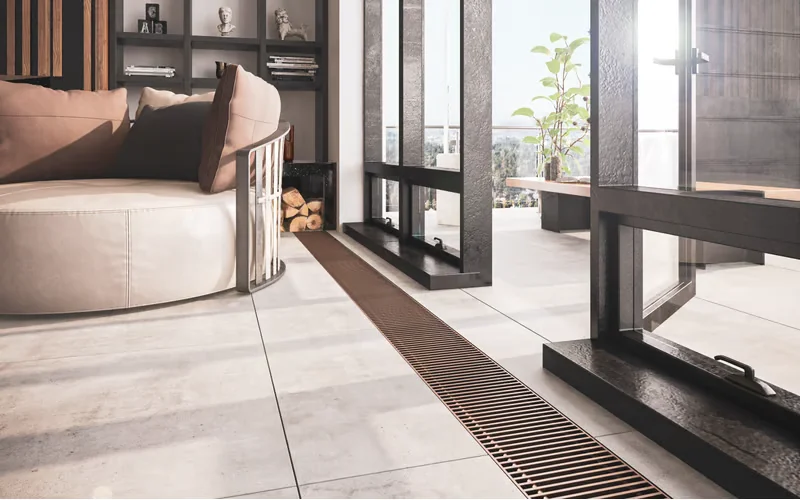

Silent natural-convection trench heater for heating near panoramic windows.

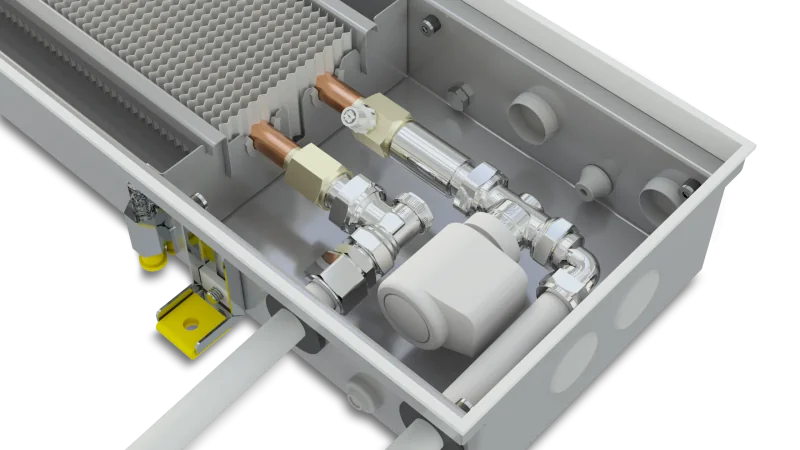

The Konveka FC trench convector is a hydronic convector designed to create a thermal curtain along panoramic glazing and compensate for heat loss in residential, commercial and public interiors. The model uses natural convection, a copper-aluminum heat exchanger and is rated for a maximum operating pressure of 25 bar.
Available dimensions range from 800–3000 × 220–420 × 90–150 mm, with heat output up to 2424 W. The construction is suitable for integration into modern interiors and low-temperature heating systems. Selection should consider room heat loss, heating-medium temperature, glazing length, available installation space, connection arrangement and required finish.
Silent natural-convection trench heater for heating near panoramic windows.
| Equipment type | Convector |
|---|
| Convection type | Natural |
|---|
| Size range | 800–3000 × 220–420 × 90–150 mm |
|---|
| Heating capacity | up to 2424 W |
|---|---|
| Heating capacity per metre | up to 808 W/m |
| Airflow | Natural convection |
|---|
| Sound level | Silent operation |
|---|
| Maximum working pressure | 25 bar |
|---|
| Casing | Stainless steel |
|---|---|
| Heat exchanger | Copper–aluminium |
